DESCRIPTION

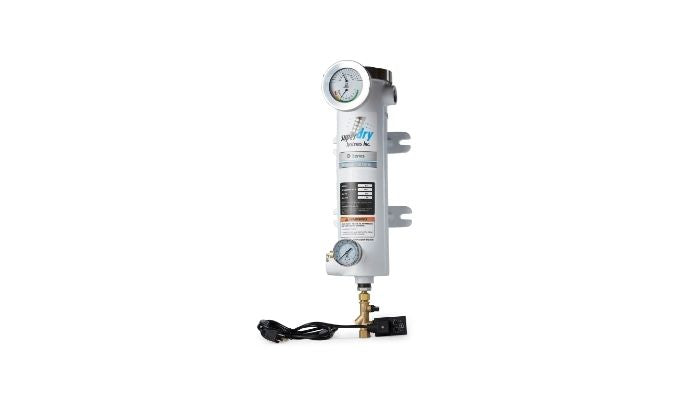

The D Series is a single tower desiccant air dryer designed for point-of-use and intermittent flow applications. The wet compressed air enters at the inlet, is first separated due to the off-set inlet creating centrifugal separation to trap water droplets and subsequently passes around a polypropylene coalescer element, felt pads and stainless-steel grids to remove solid particulates. The air flows upward through a sewed filtration desiccant bag that acts as a sponge to absorb moisture. Finally, the air flows again through a second stage of filtration to eliminate any desiccant dust. This 3-stage system efficiently provides separation, filtration and drying. It is time to replace the cartridge when the Moisture Gauge indicates saturation. The replacement is fast and mess free thanks to the US stainless-steel clamp. The rust-free powder coated aluminum housing is made in Canada and includes built-in brackets.

SPECS

INLET / OUTLET PORTS: 1'' NPT
AIR FLOW @ 100 PSIG: 70 SCFM
MAXIMUM INLET PRESSURE: 150 PSIG
MAXIMUM INLET TEMPERATURE: 100°F (38°C)
PRE-FILLED WITH DESICCANT CARTRIDGE
PRESSURE GAUGES, SAFETY VALVE AND BALL VALVE INCL.
UNIT WEIGHT : 25 LBS
