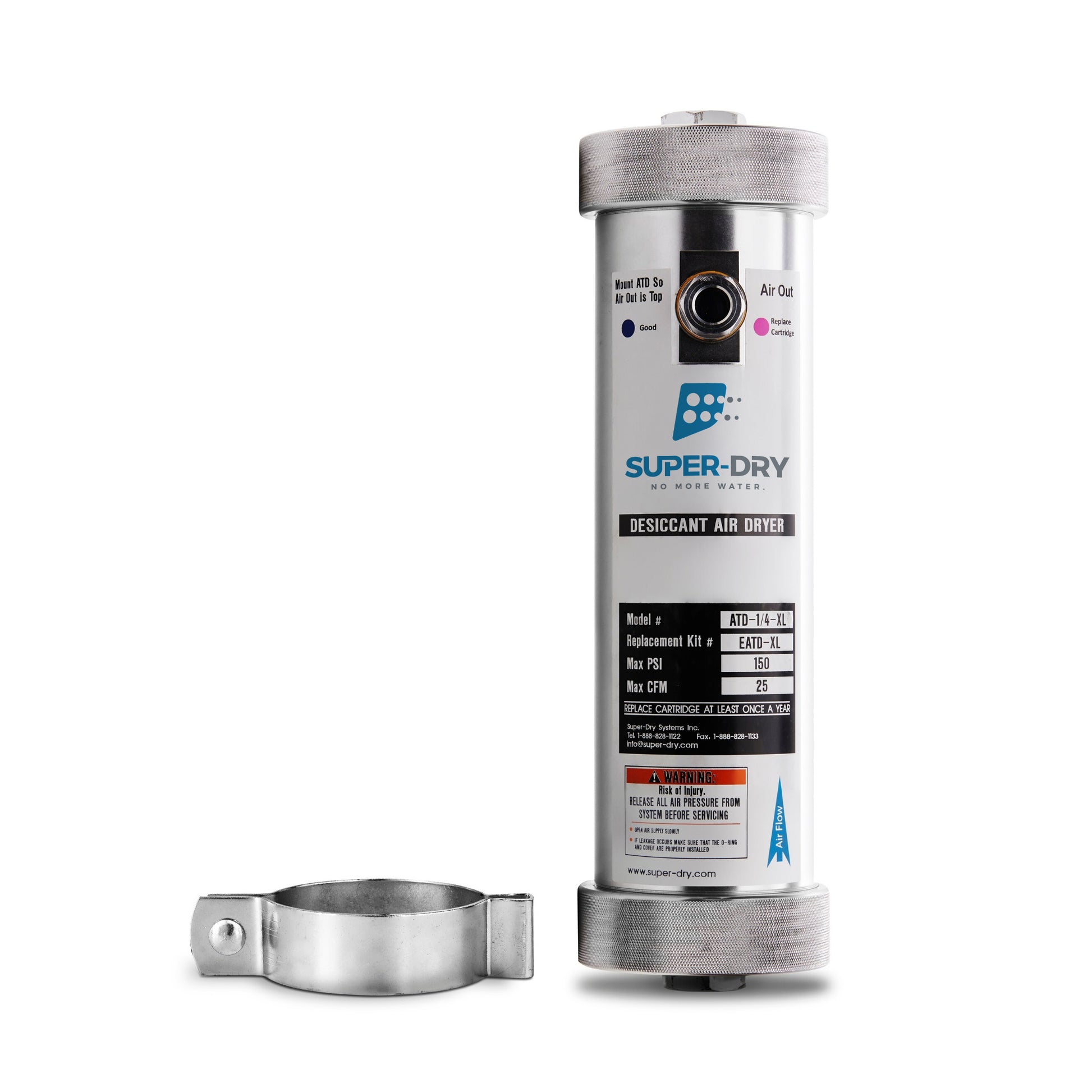

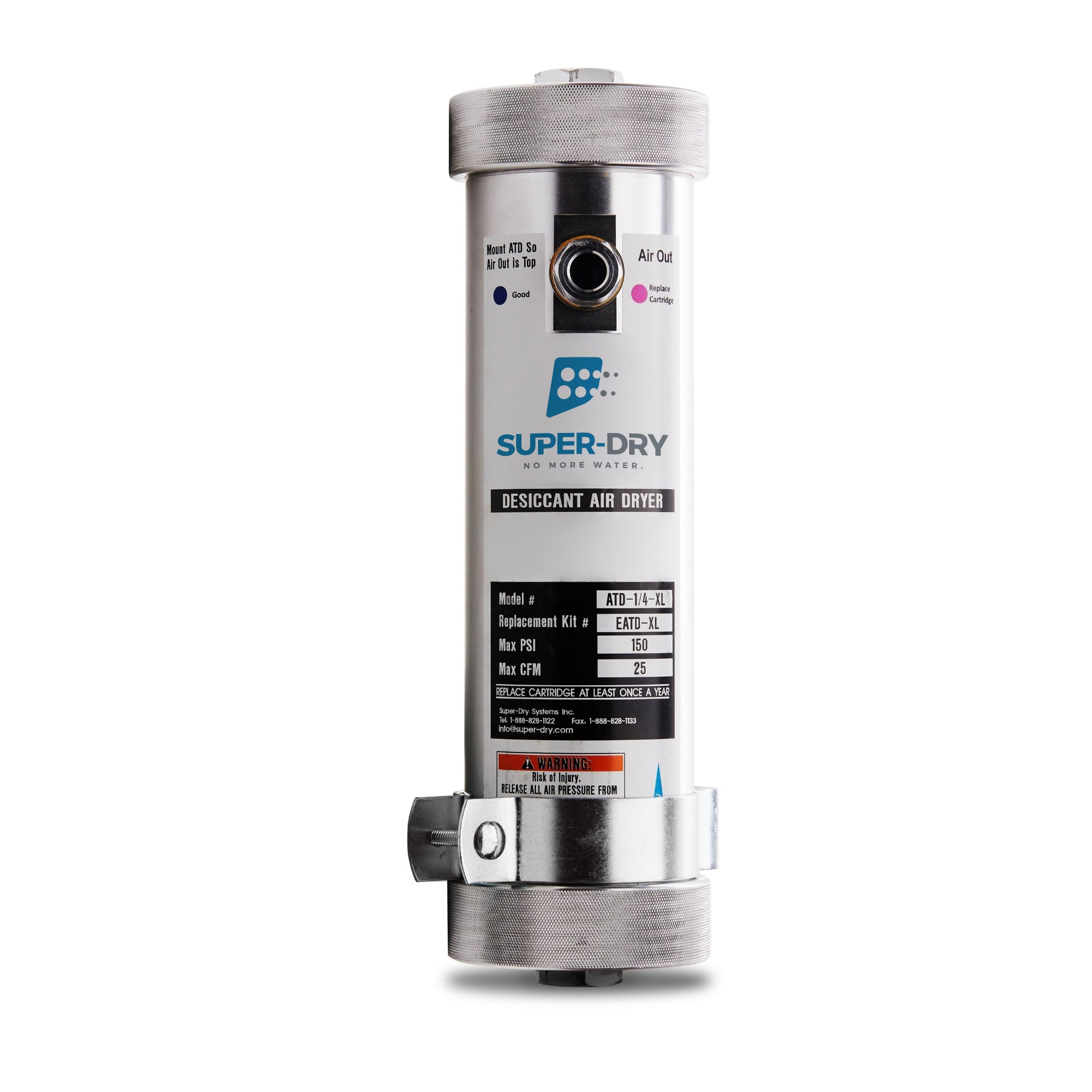

ATD 1/4 XL-Desiccant inline compressed air dryer, ¼″ NPT, with silica gel desiccant
ATD 1/4 XL-Desiccant inline compressed air dryer, ¼″ NPT, with silica gel desiccant
SKU:290-102
175 in stock
Super-Dry products deliver reliable results when installed under proper system conditions. If you’re unsure about your setup, we recommend having a local compressed air specialist review your system before installation. Super-Dry does not provide on-site support.
We usually process standard orders within 1-2 business days; Express shipping does not accelerate the order processing.
DESCRIPTION

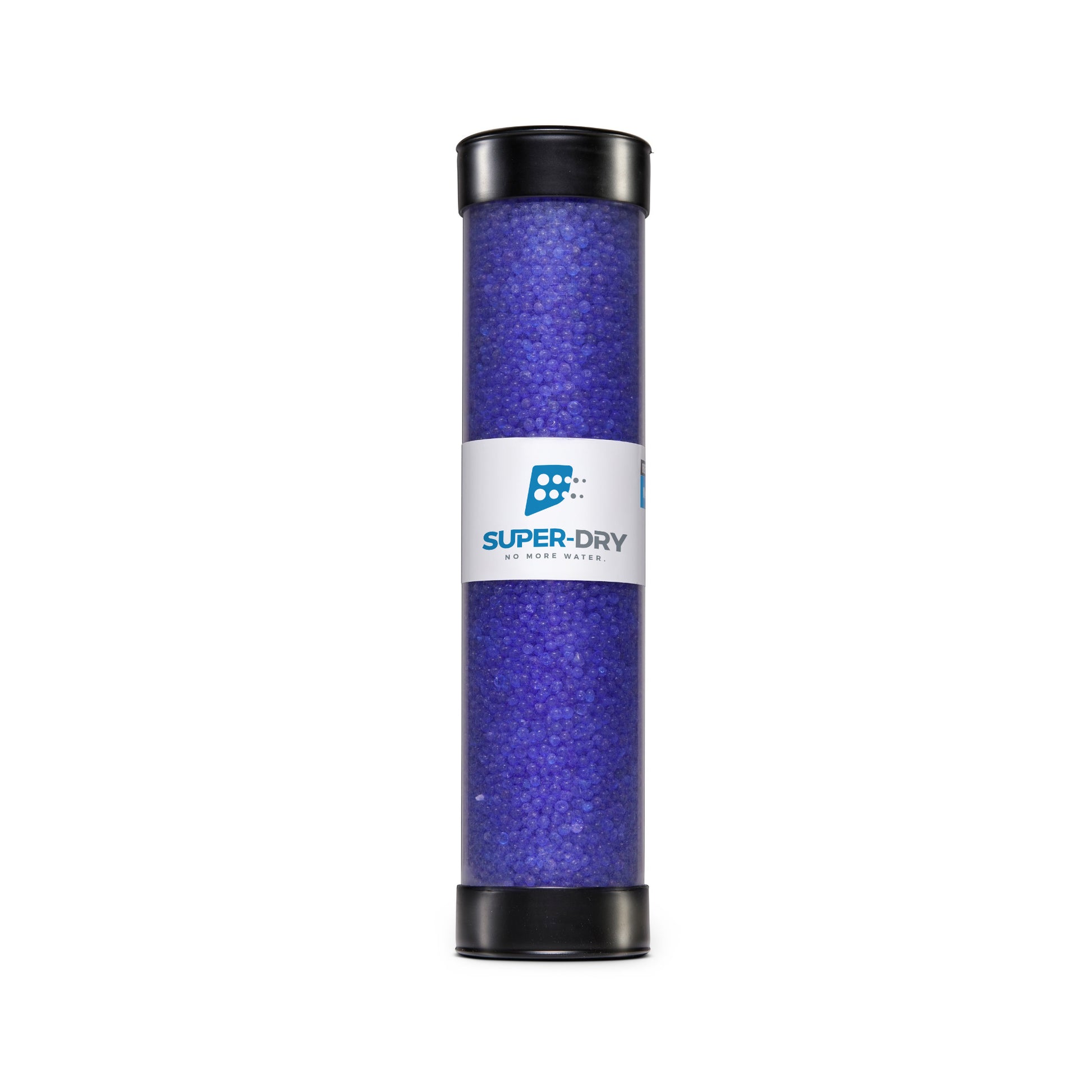

The ATD Series is an in-line compressed air dryer designed for point-of-use applications such as paint shops. The in-line dryer will remove water and moisture from compressed air, making it perfect for air tools, pneumatic equipment, or instruments requiring dry air. When used in a cold environment, it will prevent nail guns from freezing. The cartridge consists of silica gel (blue pellets) in a plastic tube. Replacing the In-line Dryer cartridge is a quick procedure. The built-in sight glass indicates when the desiccant is saturated. The unit comes with a fixing clip. The dryer is perfect for intermittent use and offers a very low-pressure drop. DevilBiss Desiccant Air Dryer, DevilBiss DAD 500, CamAir CT30, Devilbiss CT30, DevilBiss DAD
SPECS
- INLET / OUTLET PORTS: 1/4" NPT
- AIR FLOW @ 100 PSIG: 25 SCFM
- MAXIMUM INLET PRESSURE: 150 PSIG
- MAXIMUM INLET TEMPERATURE: 100°F (38°C)
- PRESSURE DIFFERENTIAL: 1.5 PSID (@100 PSI)
- FIXING CLIP INCLUDED
