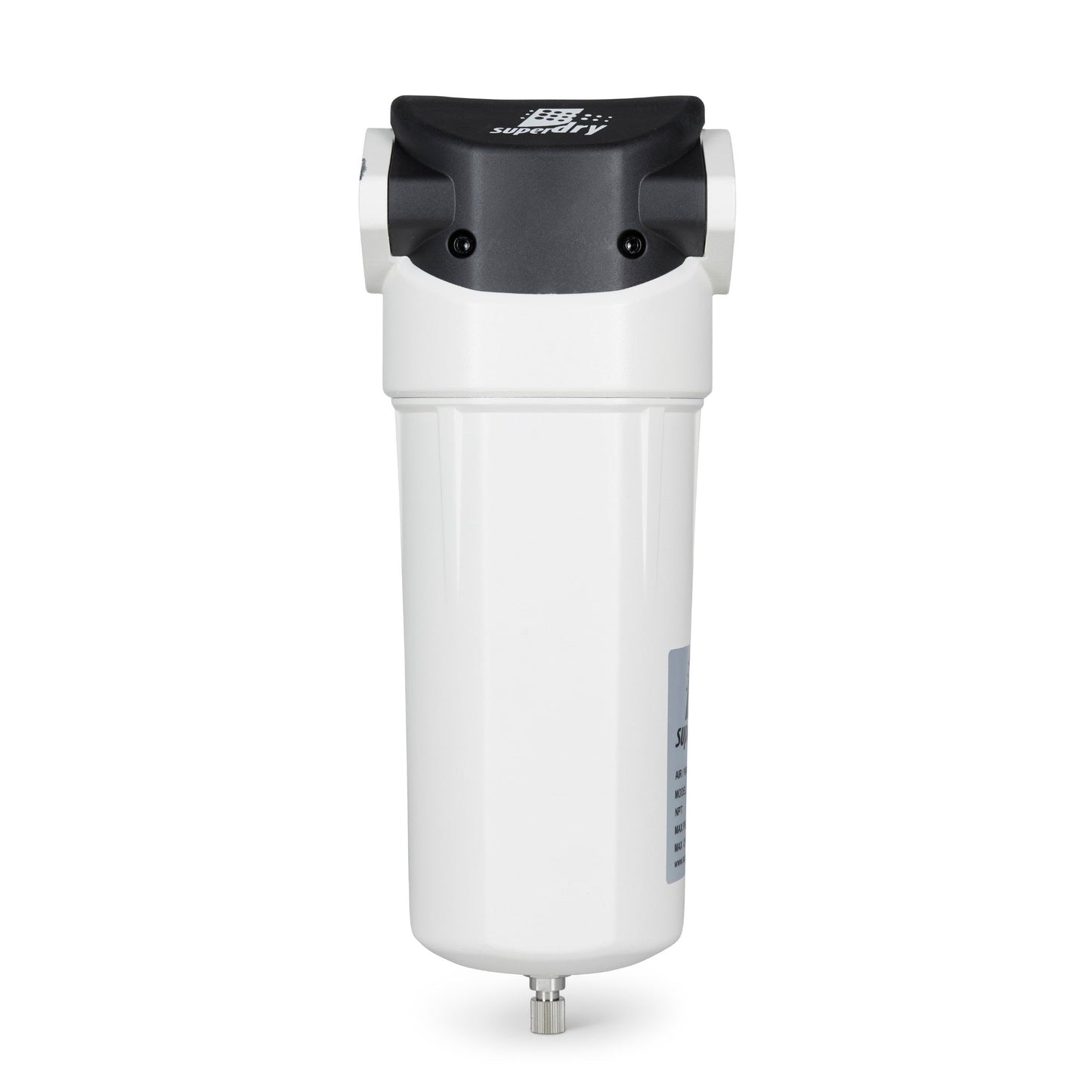

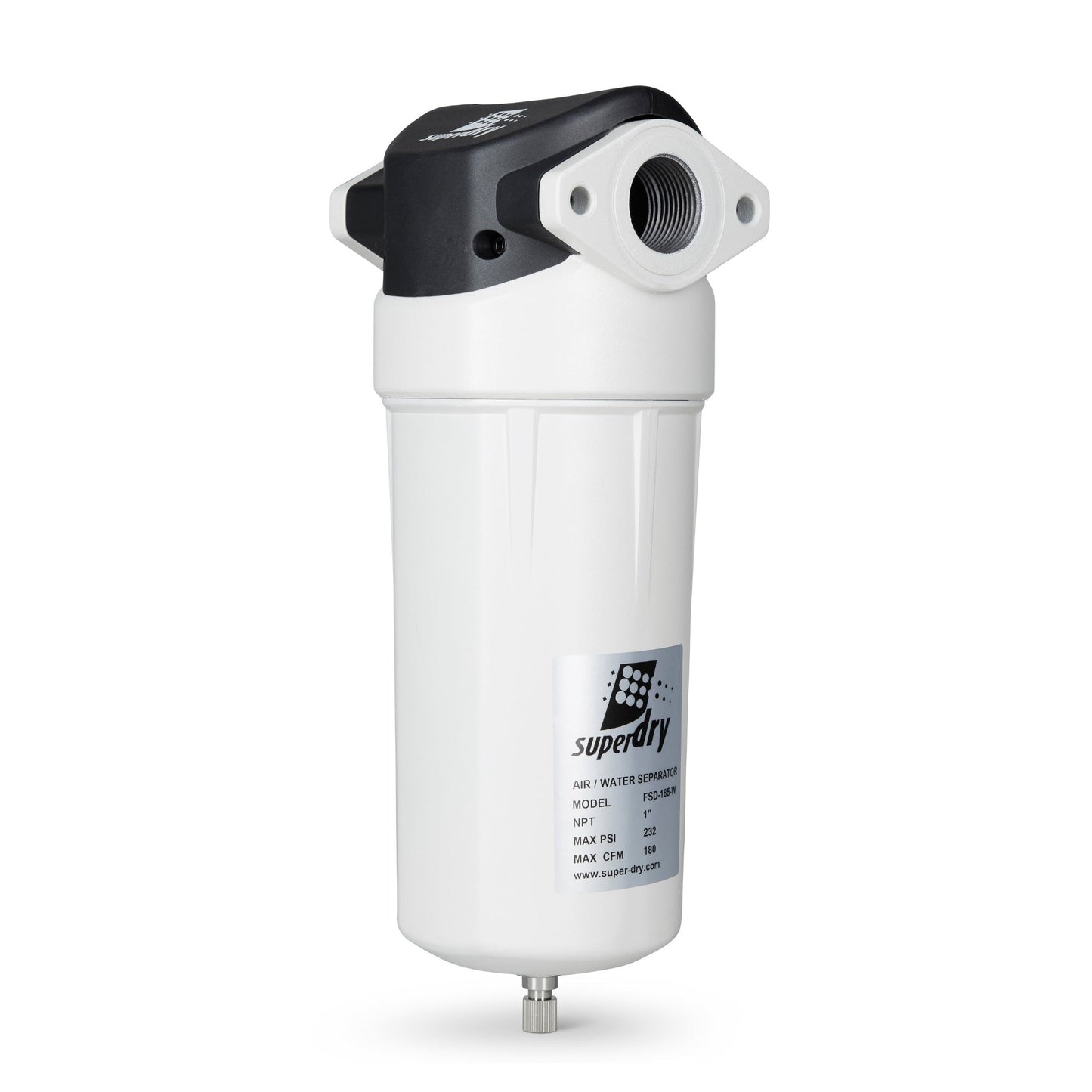

FSD-185-W - Water Separator

VIDEO

DESCRIPTION

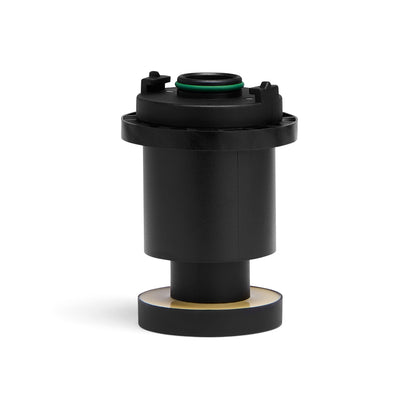

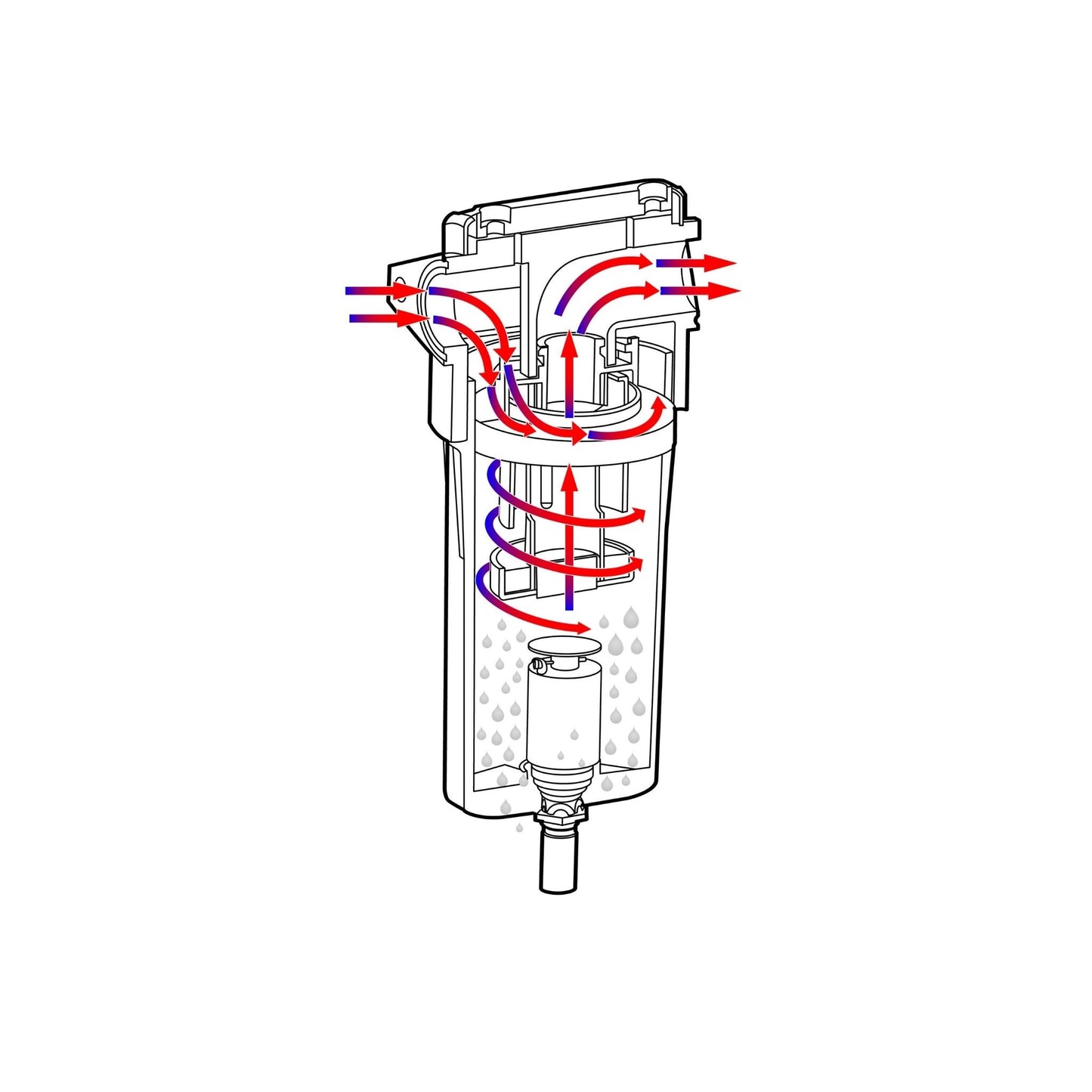

The FSD Series Water Separators have been designed for the efficient removal of bulk liquid contamination from compressed air.  The Super-Dry water separators use centrifugal motion to force liquid water out of compressed air.  Each centrifugal separator comes with a built-in float drain and an internal spinner.  That removes large quantities of condensate by centrifugal action.  Centrifugal water separator designs are installed up-stream of a compressed air dryer or downstream of aftercoolers or air receivers.

SPECS

• INLET / OUTLET PORTS: 1" NPT
• AIR FLOW @ 100 PSIG: 180 SCFM
• MAXIMUM INLET PRESSURE: 232 PSIG
• MAXIMUM INLET TEMPERATURE: 176°F (80°C)

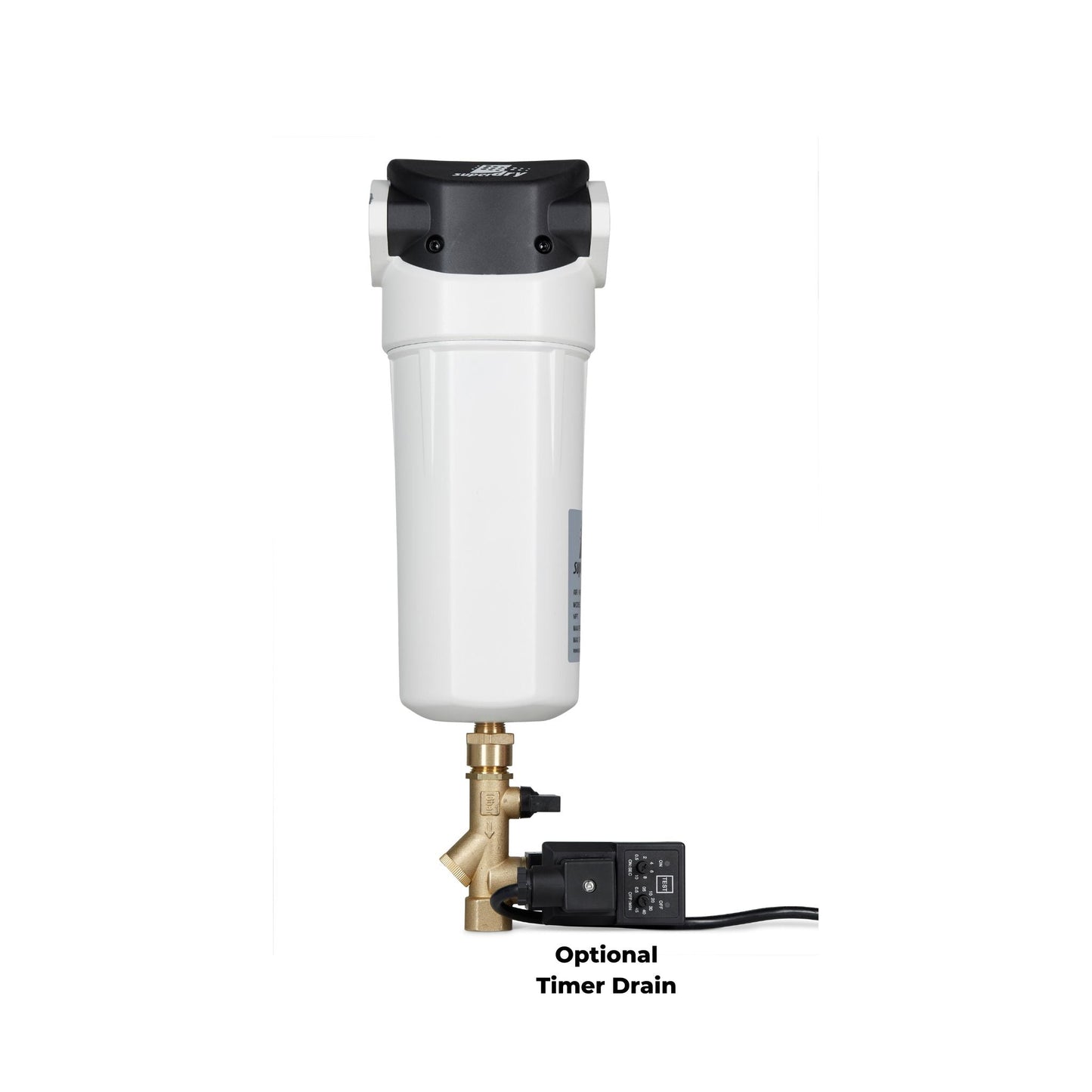

• DRAINAGE: FLOAT DRAIN (INCL.) OR TIMER DRAIN (OPTION)
