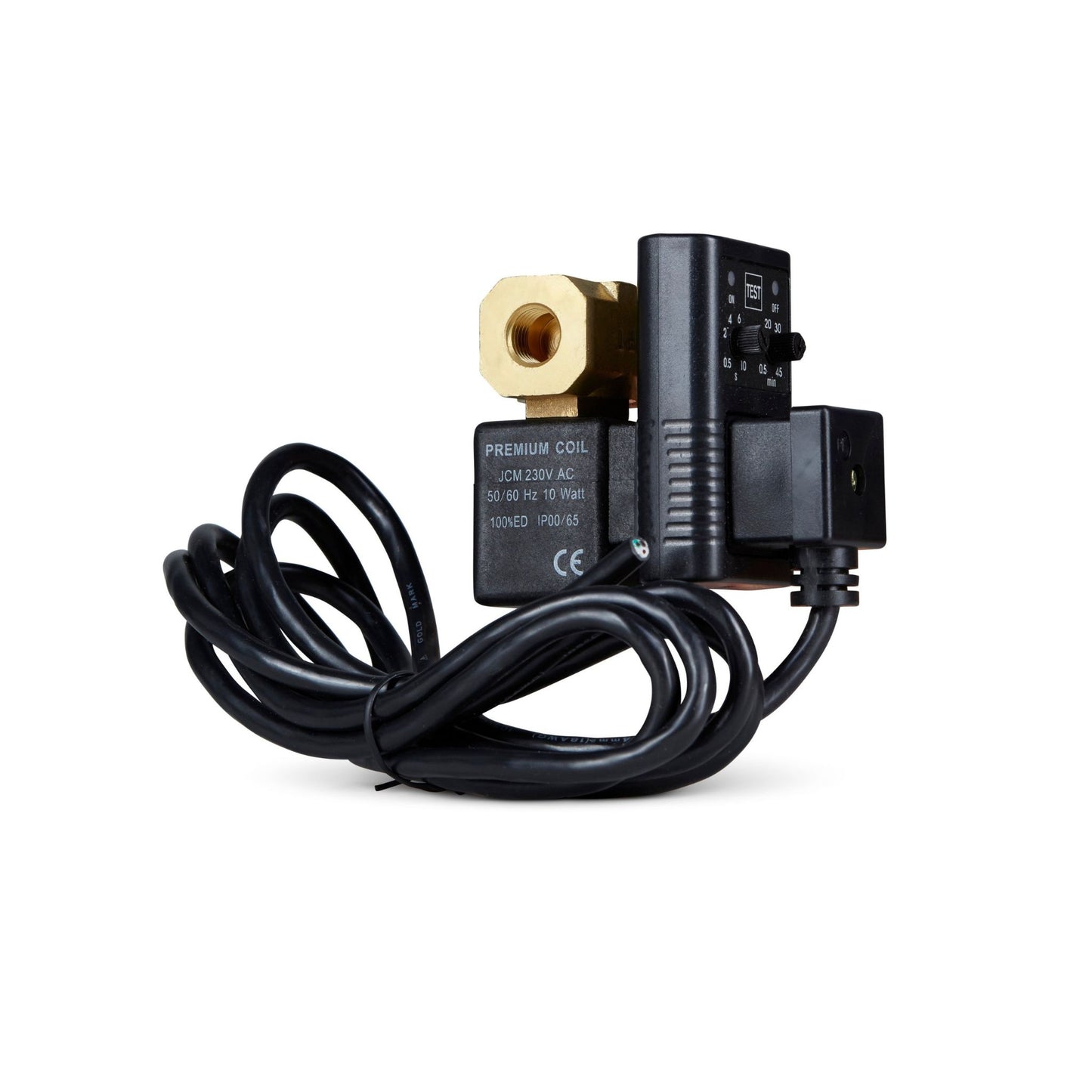

TD 1/4 220V - Electronic Timer Drain

DESCRIPTION

The TD timer-controlled condensate drain is a combination of a solenoid valve, a ball valve strainer and an electronic timer designed to automatically remove condensate from compressors, compressed air dryers and receiver tanks.The TD timer-controlled condensate drain is a combination of a solenoid valve, a ball valve strainer and an electronic timer designed to automatically remove condensate from compressors, compressed air dryers and receiver tanks.DevilBiss Desiccant Air Dryer, DevilBiss DAD 500, CamAir CT30, Devilbiss CT30, DevilBiss DAD

SPECS

PRESSURE RANGE 0 - 230 PSI
SUPPLY VOLTAGE  220 VAC/DC 50/60Hz
TEMPERATURE 34 - 131 °F
TIMER CYCLE RANGE (ON / OFF) 0.5 - 10 seconds / 0.5 - 45 minutes
TIMER CYCLE INDICATION Bright LED illumination
TEST FEATURE Yes
VALVE TYPE 2/2 way, direct acting
INLET/OUTLET CONNECTIONS 1/4″
INLET CONNECTION HEIGHT 0.4"
VALVE HOUSING MATERIAL Brass
