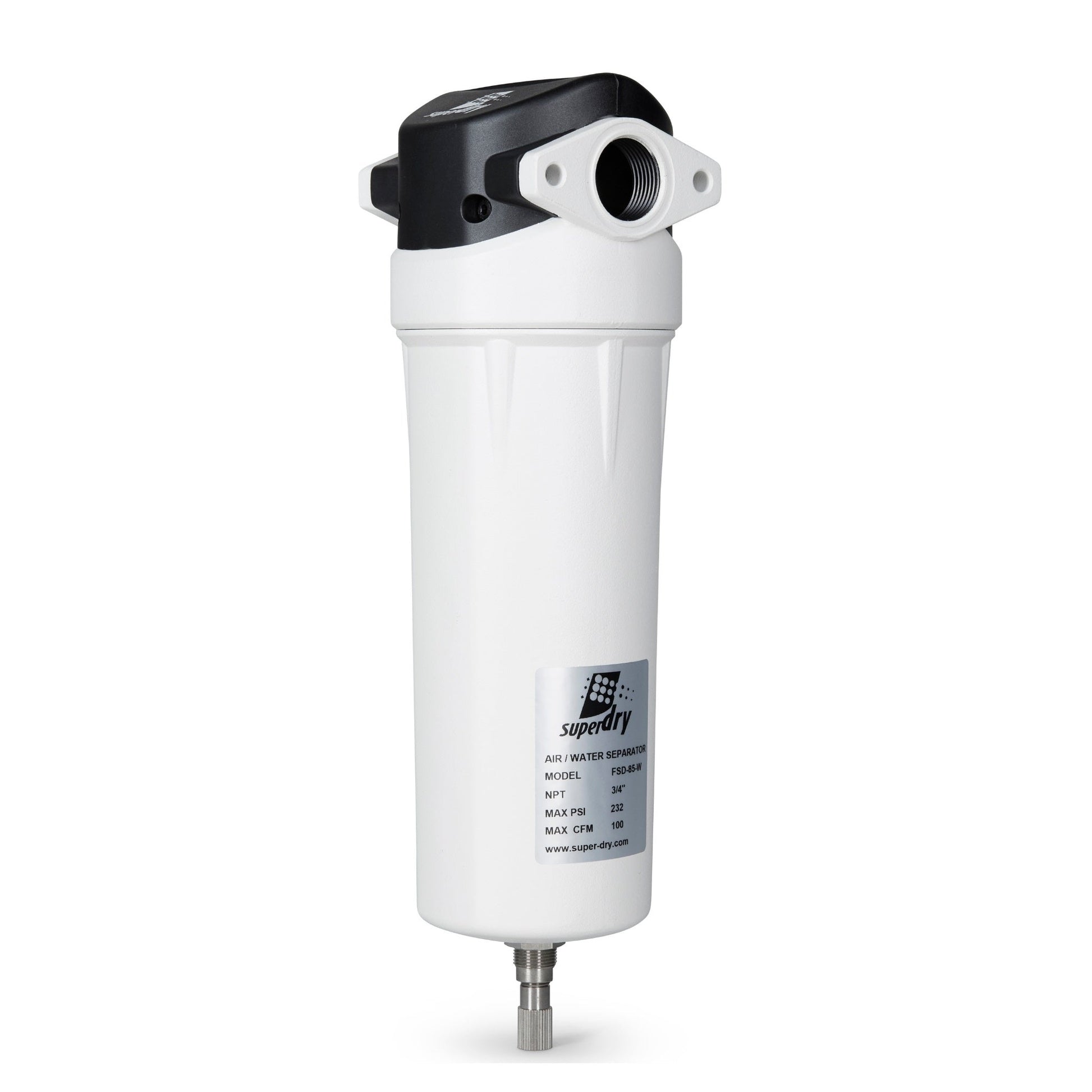

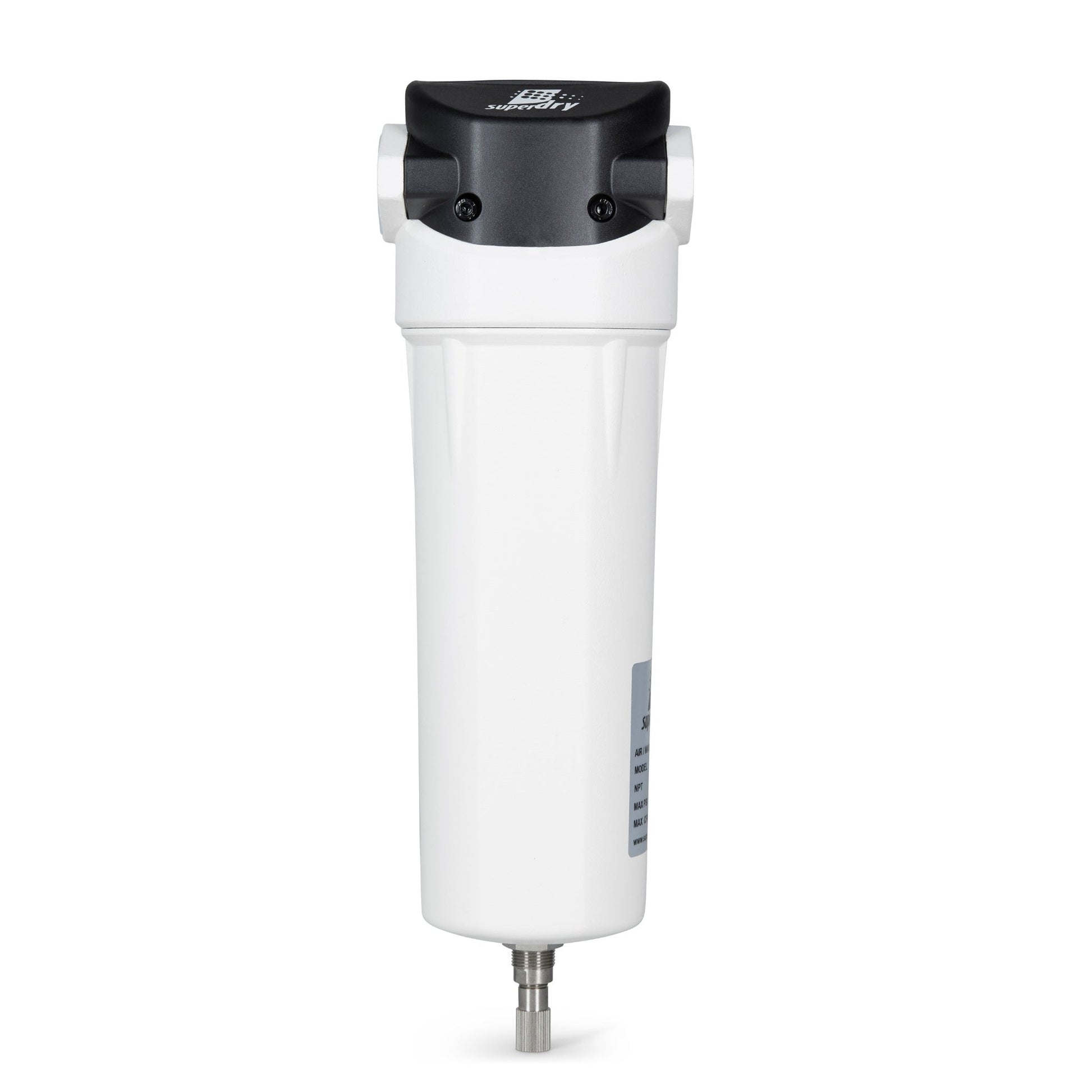

FSD-85-W - 3/4" Water Separator
FSD-85-W - 3/4" Water Separator
SKU:330-110
37 in stock
We usually process standard orders within 1-2 business days; Express shipping does not accelerate the order processing.
DESCRIPTION

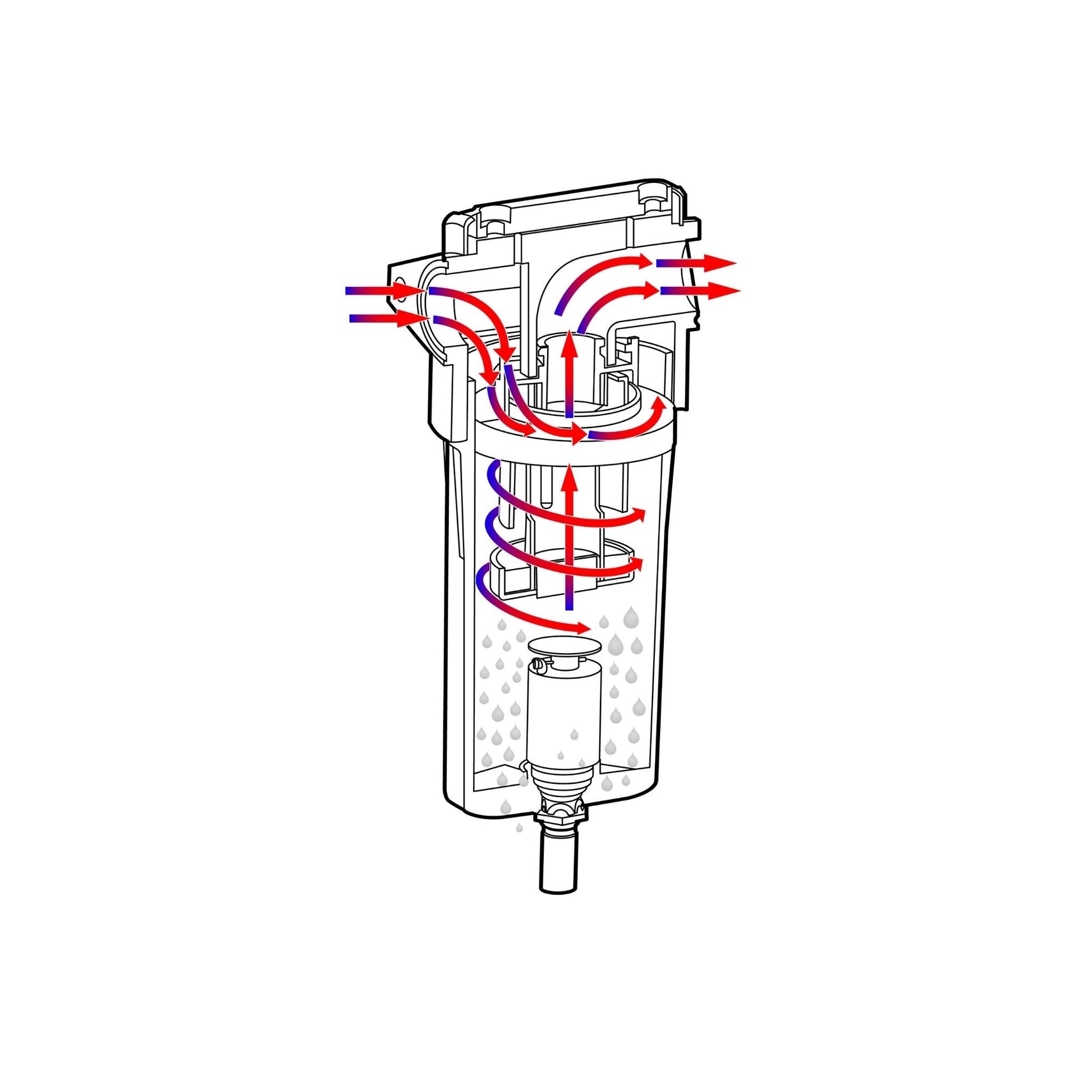

The FSD Series Water Separators have been designed for the efficient removal of bulk liquid contamination from compressed air. The Super-Dry water separators use centrifugal motion to force liquid water out of compressed air. Each centrifugal separator comes with a built-in float drain and an internal spinner. That removes large quantities of condensate by centrifugal action. Centrifugal water separator designs are installed upstream of a compressed air dryer or downstream of aftercoolers or air receivers.DevilBiss Desiccant Air Dryer, DevilBiss DAD 500, CamAir CT30, Devilbiss CT30, DevilBiss DAD
SPECS
- INLET / OUTLET PORTS: 3/4" NPT
- AIRFLOW @ 100 PSIG: 100 SCFM
- MAXIMUM INLET PRESSURE: 232 PSIG
- MAXIMUM INLET TEMPERATURE: 176°F (80°C)

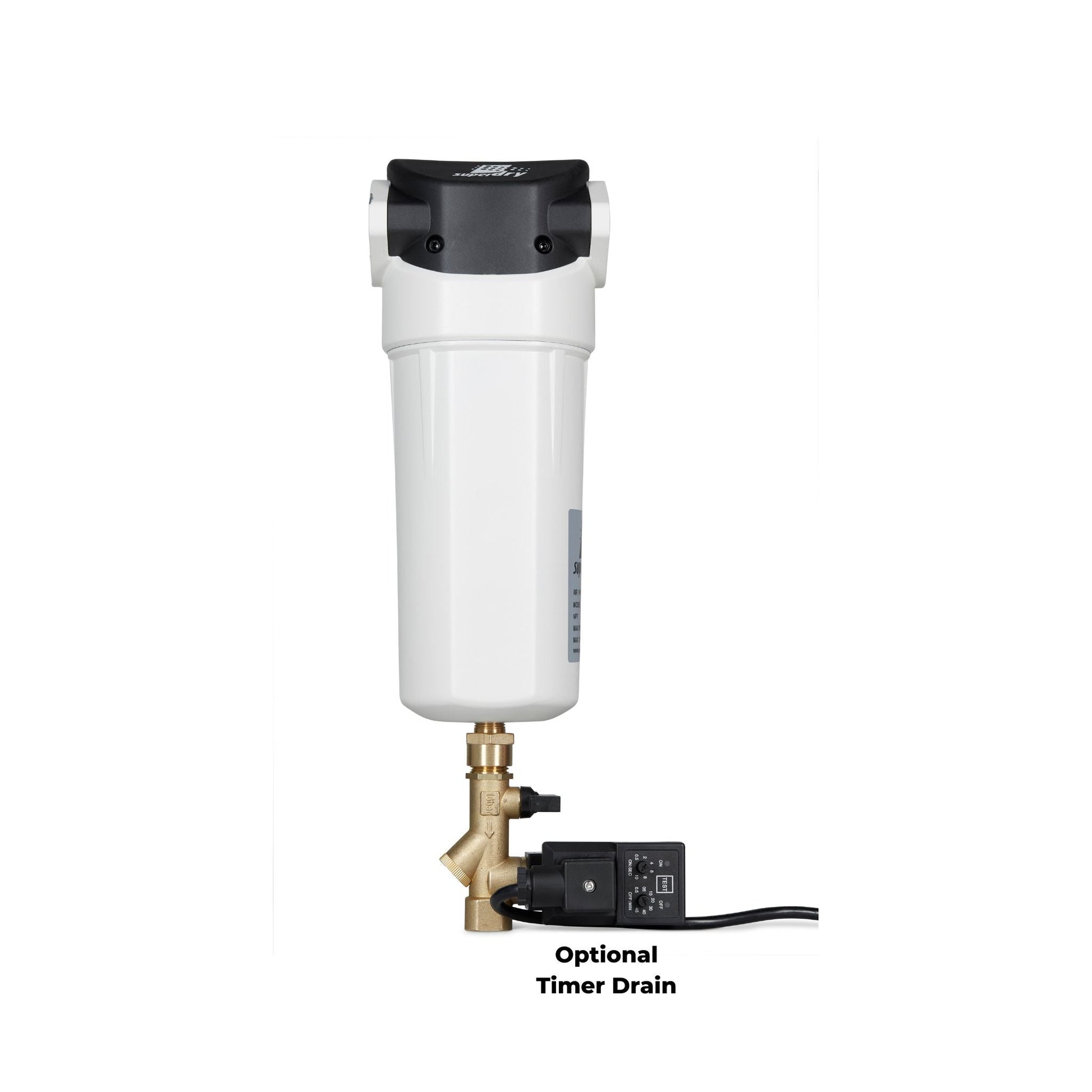

- DRAINAGE: FLOAT DRAIN (INCL.) OR TIMER DRAIN (OPTION)
