Super-Dry Systems
TD 1/4 220V - Electronic Timer Drain
TD 1/4 220V - Electronic Timer Drain
SKU:320-230
Low stock: 4 left
We usually process standard orders within 1-2 business days; Express shipping does not accelerate the order processing.
DESCRIPTION

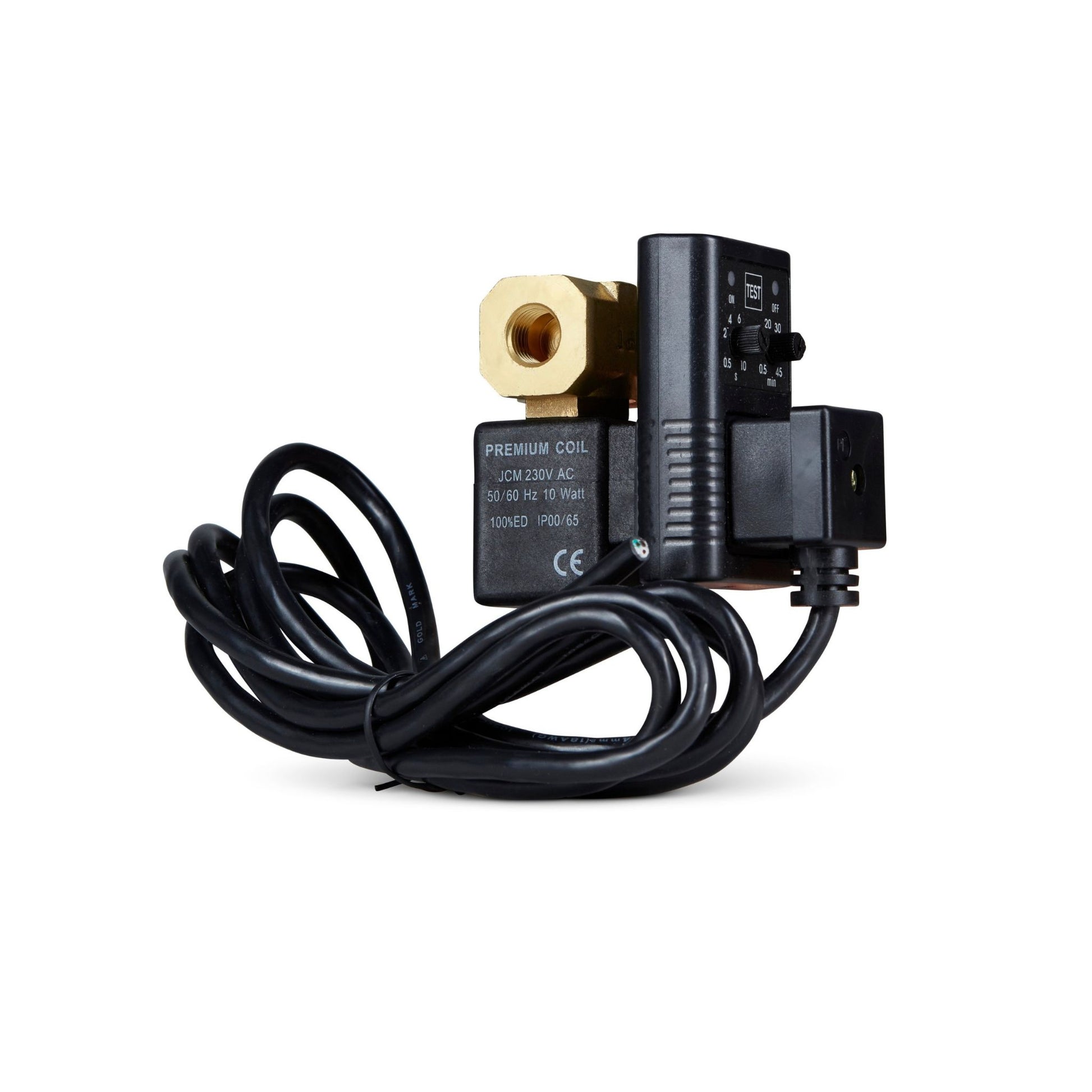

The TD timer-controlled condensate drain is a combination of a solenoid valve, a ball valve strainer and an electronic timer designed to automatically remove condensate from compressors, compressed air dryers and receiver tanks.The TD timer-controlled condensate drain is a combination of a solenoid valve, a ball valve strainer and an electronic timer designed to automatically remove condensate from compressors, compressed air dryers and receiver tanks.DevilBiss Desiccant Air Dryer, DevilBiss DAD 500, CamAir CT30, Devilbiss CT30, DevilBiss DAD
SPECS
PRESSURE RANGE 0 - 230 PSI
SUPPLY VOLTAGE 220 VAC/DC 50/60Hz
TEMPERATURE 34 - 131 °F
TIMER CYCLE RANGE (ON / OFF) 0.5 - 10 seconds / 0.5 - 45 minutes
TIMER CYCLE INDICATION Bright LED illumination
TEST FEATURE Yes
VALVE TYPE 2/2 way, direct acting
INLET/OUTLET CONNECTIONS 1/4″
INLET CONNECTION HEIGHT 0.4"
VALVE HOUSING MATERIAL Brass
